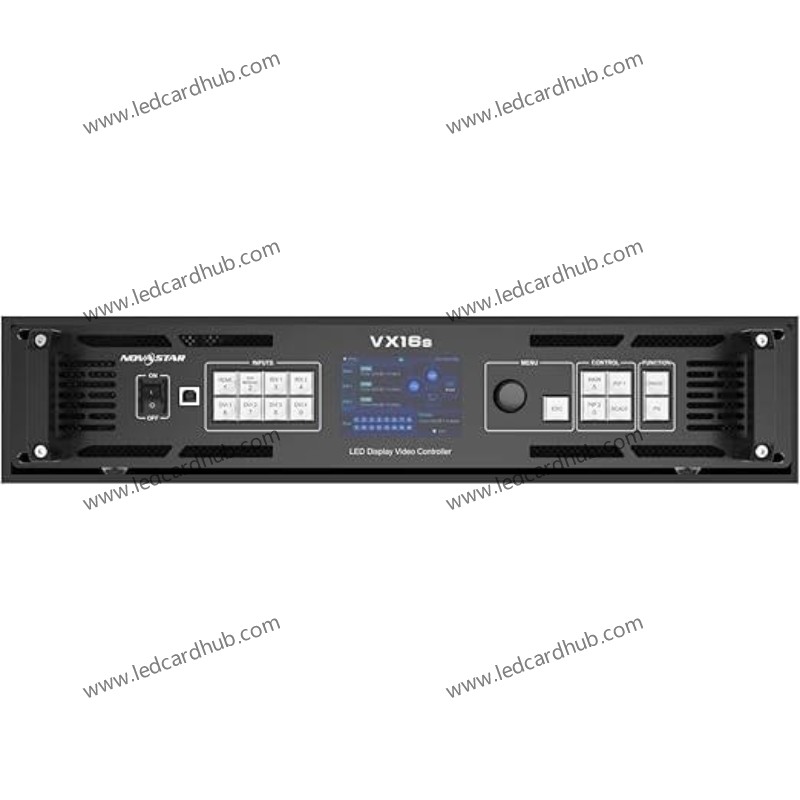

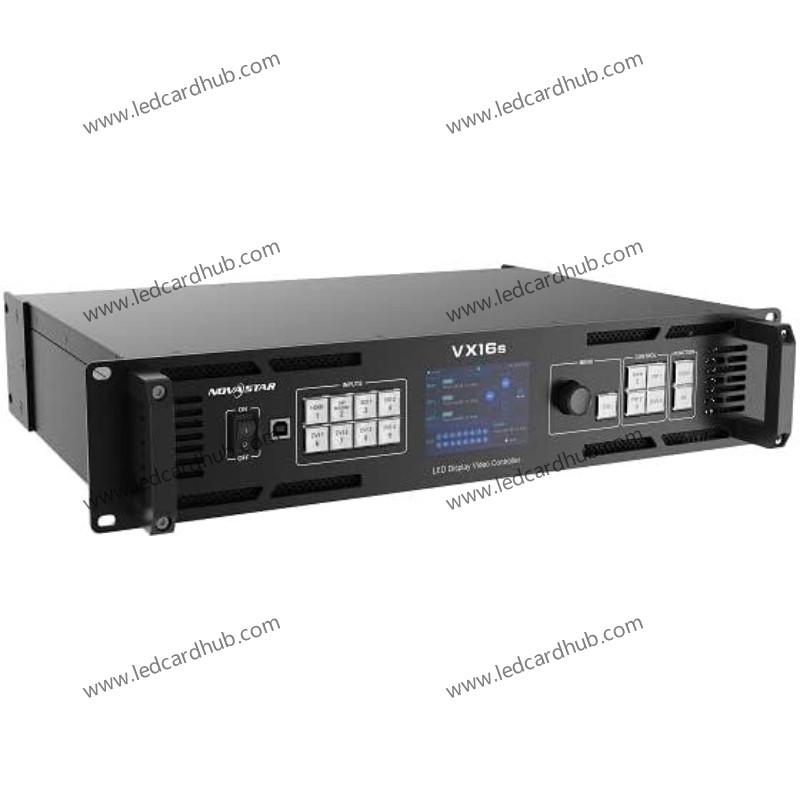

The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit, Ultra HD 4K×2K@60Hz image processing and sending capabilities,as well as up to 10,400,000 pixels
Description

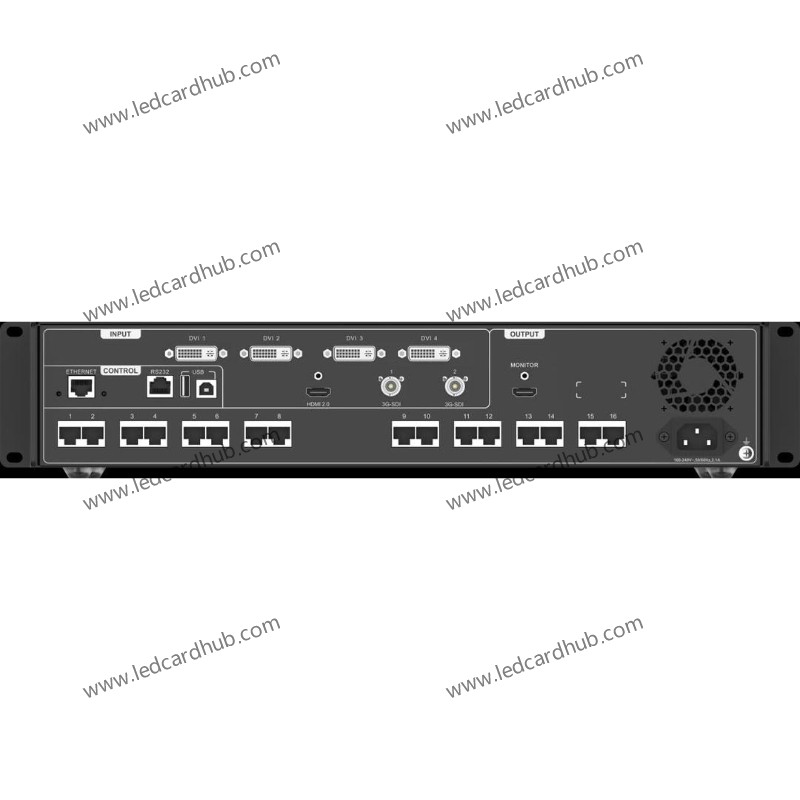

Industry-standard input connectors
− 2x 3G-SDI 1920×1080@60Hz
− 1x HDMI 2.0 3840×2160@60Hz
− 4x SL-DVI 1920×1080@60Hz
– 16 Ethernet output ports load up to 10,400,000
pixels.
– 3 independent layers
− 1x 4K×2K main layer
2x 2K×1K PIPs (PIP 1 and PIP 2)
− Adjustable layer priorities
– DVI mosaic
Up to 4 DVI inputs can form an independent
input source, which is DVI Mosaic.
– Decimal frame rate supported
Supported frame rates: 23.98 Hz, 29.97 Hz,
47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.
– 3D
Supports 3D display effect on the LED screen.
The device output capacity will be halved after
the 3D function is enabled.
Personalized image scaling
Three scaling options are pixel-to-pixel, full
screen and custom scaling.
– Image mosaic
Up to 4 devices can be linked to load a super
large screen when used together with the video
distributor.
– Easy device operation and control through VCan
– Up to 10 presets can be saved for future use.
– EDID management
Custom EDID and standard EDID supported
– Device backup design
In backup mode, when the signal is lost or the
Ethernet port fails on the primary device, the
backup device will take over the task
automatically.
Certifications：CE, FCC, IC, RoHS
Size: 485*95*373mm
Weight:10KG
